Straight Line Stencil Stop Bar Template 24" x 132" for Roadways

Straight Line Stencil Stop Bar Template 24" x 132" for Roadways

STEN-LINE-24x132

$79.99 USD
$0.00 USD $79.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

24" × 132" stop bar road stencil – Wisconsin DOT standard for intersections and highways

Overview

The 24" × 132" straight line stencil stop bar is a two-piece LDPE plastic template for painting stop bars on roadways at intersections and pedestrian crossings. At 1/16" thick, it is flexible and rollable for transport and storage, and meets Wisconsin DOT specifications for stop bar placement and line weight.

The stencil marks the precise stopping point for approaching vehicles before crosswalks and intersections. Once paint dries, the stencil flexes to break the bond between paint and plastic, allowing dry paint to peel away cleanly (oil-based paints excluded). It is a durable alternative to permanent signage for high-traffic intersections.

Primary Applications

  • Intersections: Stop bars at vehicle approach points before crosswalks and traffic signals.
  • Highway entrances & exits: Clear stop positioning at ramp terminals and merge points.
  • Pedestrian crossings: Visual stopping reference to protect foot traffic at marked crossing zones.
  • Municipal & DOT programs: Standardized road marking across multiple intersections or jurisdictional sites.

Specifications

  • Dimensions: 24"W × 132"L (two-piece template, overall assembled size 119.5" × 47")

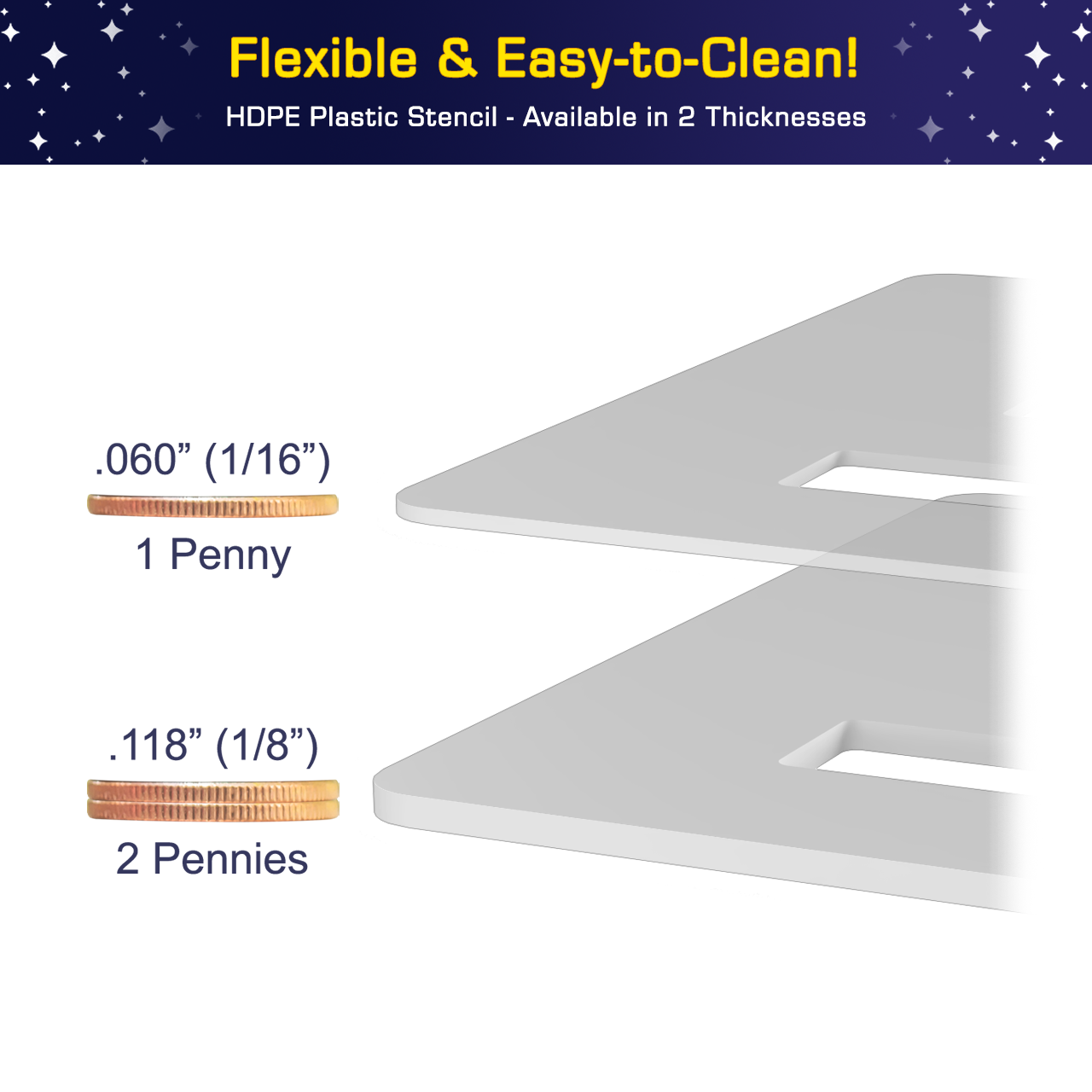

  • Thickness: 1/16" (0.060", 1.5 mm)
  • Material: LDPE plastic
  • Standard: Wisconsin DOT stop bar stencil
  • Storage: Flexible and rollable
  • Cleaning: Flex the stencil to release dry paint; paint peels away (does not apply to oil-based paints)

FAQ & Care

What size is the painted stop bar line?
The stencil produces a 24" wide × 132" long stop bar line, meeting Wisconsin DOT standard dimensions for intersection markings.
How do I transport and store it?
The LDPE plastic is flexible and rollable, so it fits in vehicles and storage without taking up rigid frame space.
How do I remove the stencil after painting?
Flex the stencil to break the bond between the dried paint and plastic; the paint will peel away cleanly. This method does not work with oil-based paints.
Is this a one-piece or two-piece template?
It is a two-piece template. The combined assembled size is 119.5" × 47", allowing for easier handling and transport of the full 24" × 132" mark.
Can I order multiple stencils for a citywide or multi-intersection program?
Bulk orders for municipalities and DOT programs are available direct from the manufacturer, with volume pricing and the ability to match exact specifications across all sites.

Related Products

STOP Stencil Template for Road MarkingSTOP Stencil Template for Road Marking$7.9942" Arrow Combo 3 Piece Pavement Stencils42" Arrow Combo 3 Piece Pavement Stencils$110.998 Foot Letter Stencil for Parking Lots .1188 Foot Letter Stencil for Parking Lots .118$139.9996" Arrow Stencil Department of Transportation 8 Foot Template96" Arrow Stencil Department of Transportation 8 Foot Template$125.99Railroad R Stencil 72" for Roads and StationsRailroad R Stencil 72" for Roads and Stations$69.99DRIVE Stencil Reusable Template for Parking Lots and CurbsDRIVE Stencil Reusable Template for Parking Lots and Curbs$9.99

Need a custom size or bulk quantity?

Tell us your dimensions, material, or volume and we'll get you exact pricing and lead time — direct from the manufacturer.

Request a quote

Wisconsin DOT Plastic Straight Line Painting Stencil for Intersections and Highways

Product Features:

  • 2 Foot by 11 Foot Stop Bar Stencil for Road Intersections
  • 2 Piece Template
  • Overall Size: 119.5" x 47"
  • Thickness: 1/16", 0.060", 1.5MM
  • Flexible and rollable for easy storage.
  • Stencils are easily cleaned by simply flexing the stencil to break the connection between paint and plastic. Once flexed, the dry paint peels right off (excluding oil based paints)
  • Proudly with LDPE

A stop bar stencil is a visual marking typically found on roadways at intersections or pedestrian crossings. It consists of a thick, solid horizontal line, often white, sometimes accompanied by the word stop and a solid rectangular bar. This marking is positioned perpendicular to the direction of the approaching vehicles.

The primary purpose of a stop bar stencil is to indicate to drivers the precise point where they should come to a complete stop before entering a crosswalk or intersection. It serves as a clear visual indicator, instructing drivers to halt their vehicles behind the bar to allow for safe pedestrian passage or to yield to oncoming traffic.

These stencils are critical for traffic management and safety, ensuring that drivers stop at the designated point, promoting safe interaction between pedestrians and vehicles and providing a clear indication of where vehicles must halt before proceeding further.

When you're looking for a cheaper alternative to signs and posts, stencils are a great option! Direct traffic and clearly mark areas with convenient pavement or building stencils. We offer a variety of durable stencils. Our stencils make it easier to paint or repaint asphalt, pavement, concrete or buildings.

Parking lot parking garage or traffic roadway stencils are a cost-effective method of updating your property; these stencils help communicate parking and traffic information on parking lots, parking garages, alleyways, driveway and small streets.

Standard parking lot stencils are available in economy and all-weather options for any temperature, and include a comprehensive selection of various numbers, letters, and symbols. You can mix and match pavement marking stencils to create the exact messages that you need to convey.

We offer parking lot number stencils, parking lot line stencils, and ADA handicap symbol stencils for use anywhere in your lot. We also have a several building and warehouse templates to help notify and warn employees and keep your property looking fresh.

All sizes are approximate

Marketing Holders/321 Plastics apologizes this material is not manufactured with protective film and will have scratches yet will not affect the use of this product.
